ARES WING Monitor Arm Black 17–49" | up to 20 kg

ARES WING Monitor Arm Black 17–49 Inches

The ARES WING monitor arm in black is a heavy-duty gas spring mount for large monitors from 17 to 49 inches. It is designed for flat monitors, curved monitors, and ultrawide monitors weighing 2 to 20 kg.

The adjustable gas spring supports height adjustment and can be adapted to the monitor weight. With 255 mm of height adjustment, 570 mm reach, a Quick-Release VESA plate, and two mounting options, the arm is particularly suitable for large 49-inch setups, curved monitors, and wide ultrawide displays.

For large curved and ultrawide monitors

The monitor arm is approved for monitors from 17 to 49 inches. It is therefore suitable for conventional single monitors, large gaming monitors, curved displays, and ultrawide monitors.

The load capacity is 2 to 20 kg. According to your product data, this range applies to flat monitors as well as curved and ultrawide monitors. The monitor weight should always be checked without the stand.

With large monitors, the screen size in inches is not the only important factor. Monitor depth, center of gravity, VESA position, and the shape of the rear housing are also important. Especially with wide 49-inch displays, you should check before purchasing whether the weight, center of gravity, and VESA mounting pattern are compatible with the mount.

Key product specifications at a glance

Heavy-duty gas spring for monitors up to 20 kg

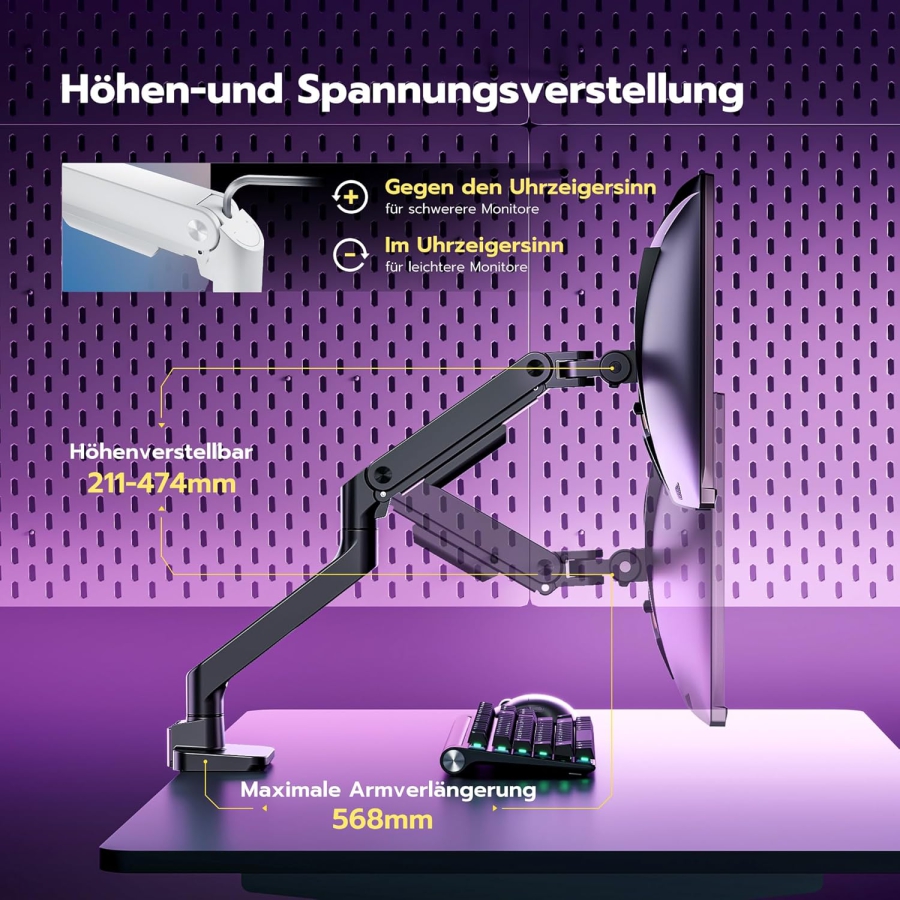

The adjustable gas spring is designed for monitors weighing 2 to 20 kg. After installation, the spring tension is adjusted to match the monitor weight. This allows the monitor to be moved in a controlled manner and held in the desired position.

If the spring is adjusted too strongly, the monitor will move upward. If it is too weak, the monitor may sink. Correct adjustment is therefore an important part of the installation process.

The ARES WING GDT1004BK is particularly suitable for heavy single monitors, large curved displays, and 49-inch ultrawide monitors where standard monitor arms may reach their limits.

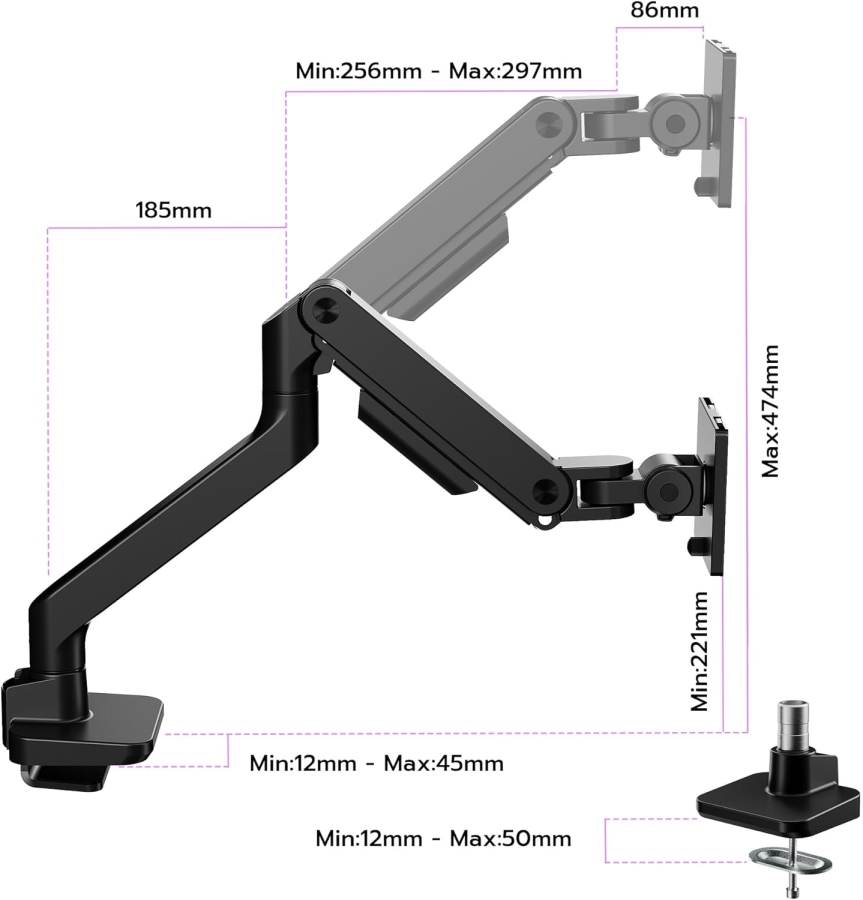

570 mm reach and 255 mm height adjustment

The monitor arm provides a maximum reach of 570 mm. This allows the monitor to be pulled closer, pushed farther back, or positioned to the side.

The height adjustment range is 255 mm. The maximum height from the desktop surface to the VESA center is 475 mm.

The large reach is particularly useful with deep desks or setups where the monitor needs to be moved flexibly between working, gaming, or focused viewing positions.

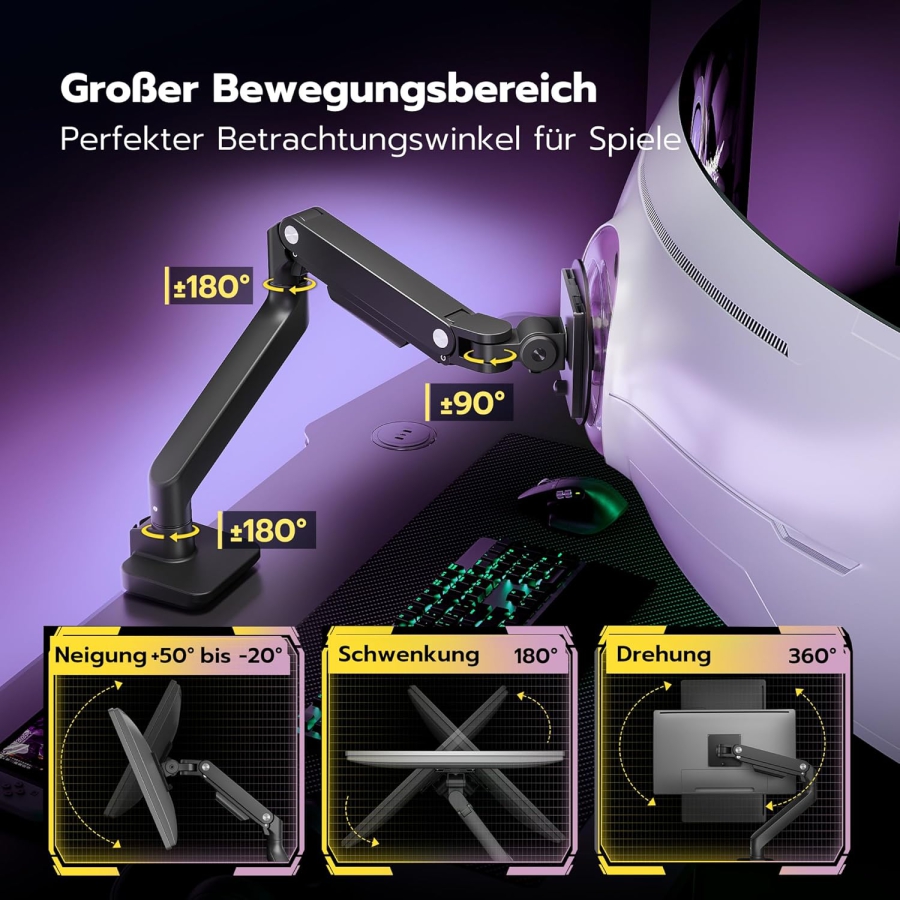

Tilt, swivel, and rotation

The monitor can be tilted 50° downward and 20° upward. It can also swivel by +90° / -90°.

The VESA mount can rotate 360°. This allows a suitable monitor to be used in landscape or portrait orientation. With very large monitors, the available space on and behind the desk should be checked before installation.

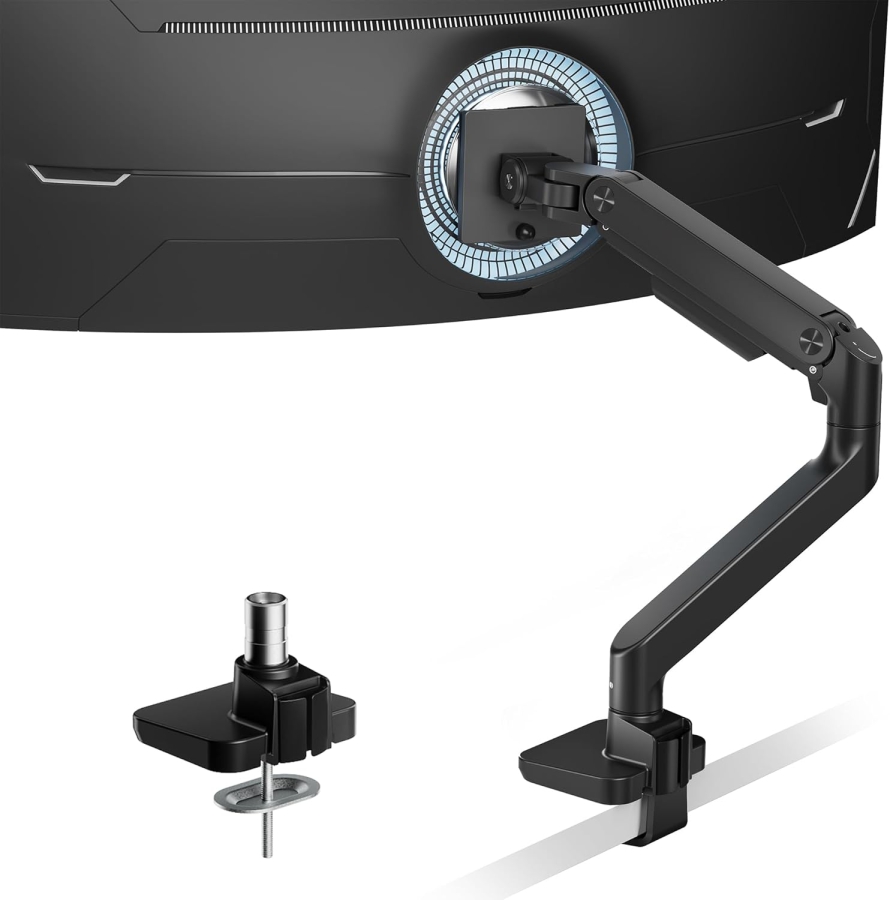

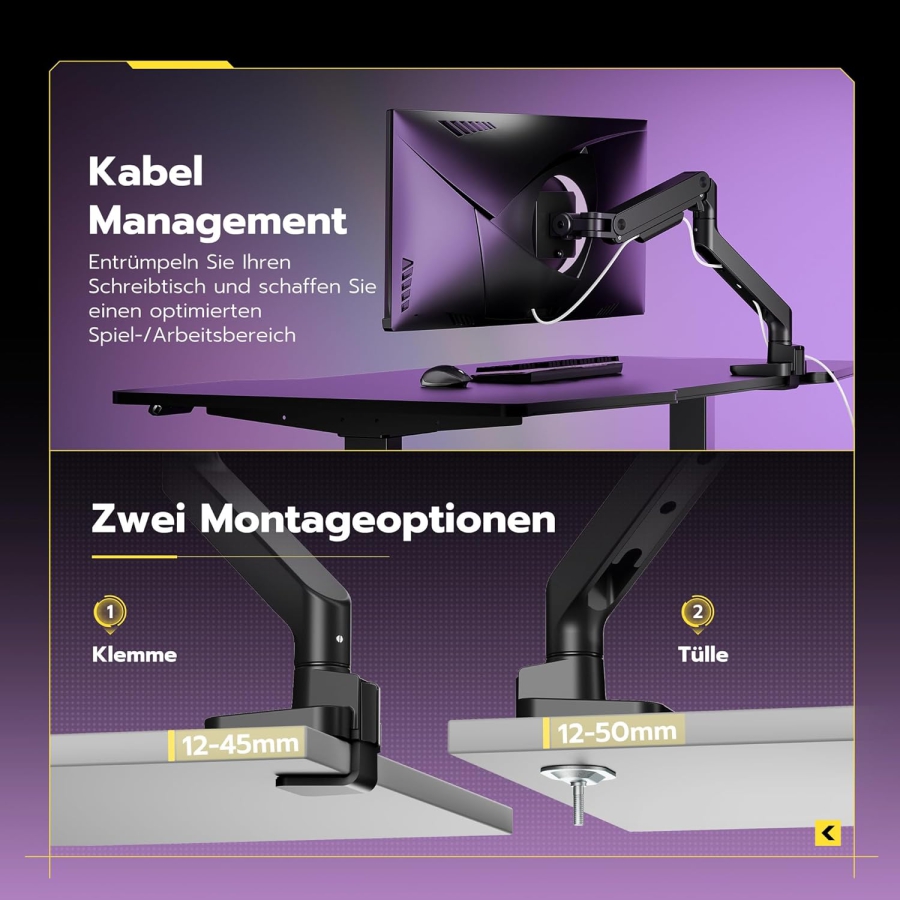

C-clamp or through-desk mounting

The C-clamp is suitable for desktop surfaces with a thickness of 12.5 to 45 mm. This mounting method attaches to the edge of the desk and is the simplest solution for many desks.

Alternatively, through-desk mounting is included. It is suitable for desktop surfaces from 12.5 to 50 mm thick. The suitable hole diameter is approximately 10 to 60 mm.

Before purchasing, check the desk thickness, desk edge, existing hole, and the available space underneath the desktop. With heavy monitors, a stable and sturdy desktop is also particularly important.

VESA 75x75 and 100x100 with Quick Release

The ARES WING monitor arm is suitable for monitors with VESA 75x75 mm or VESA 100x100 mm mounting patterns. The VESA plate is removable, making monitor installation easier.

The Quick-Release plate can first be attached to the monitor. The monitor is then hooked onto the arm together with the plate. This is particularly convenient with larger and heavier monitors.

• • VESA 75x75: Hole spacing of 75 mm horizontally and 75 mm vertically.
• • VESA 100x100: Hole spacing of 100 mm horizontally and 100 mm vertically.
• • Important: Monitor size, monitor weight, VESA dimensions, housing shape, and center of gravity must be compatible with the mount.

Cable management on the arm

The monitor arm features cable management with a long clip in the upper section and fully integrated cable management in the lower section.

Power and signal cables can therefore be routed neatly along the arm. It is important to leave enough cable slack so that movement of the arm is not restricted.

Black design made of steel and aluminum

The black finish fits well with dark monitors, gaming setups, black desk frames, and professional workstations.

The construction is made of steel and aluminum. This makes the monitor arm suitable for large single monitors and more demanding desk setups.

Package contents

The package includes the ARES WING monitor arm, C-clamp, through-desk mounting hardware, instructions, screws, and tools.

Both intended mounting methods are therefore included: attachment to the desk edge using the C-clamp and mounting through a suitable hole in the desktop.

When the monitor does not fit directly

Not every monitor can be mounted directly to a VESA mount. Some monitors do not have a VESA mounting pattern, have a recessed rear panel, or use a mounting pattern that does not directly match the mount.

• • No VESA mount on the monitor: Suitable solutions can be found under VESA Adapters.
• • VESA plate does not sit flush: VESA Spacers are suitable for this purpose.
• • Mounting pattern does not match: For different VESA dimensions, VESA Adapter Plates can help.
