BONTEC Monitor Arm 13–32" | up to 10 kg

BONTEC Monitor Arm 13–32 Inches up to 10 kg

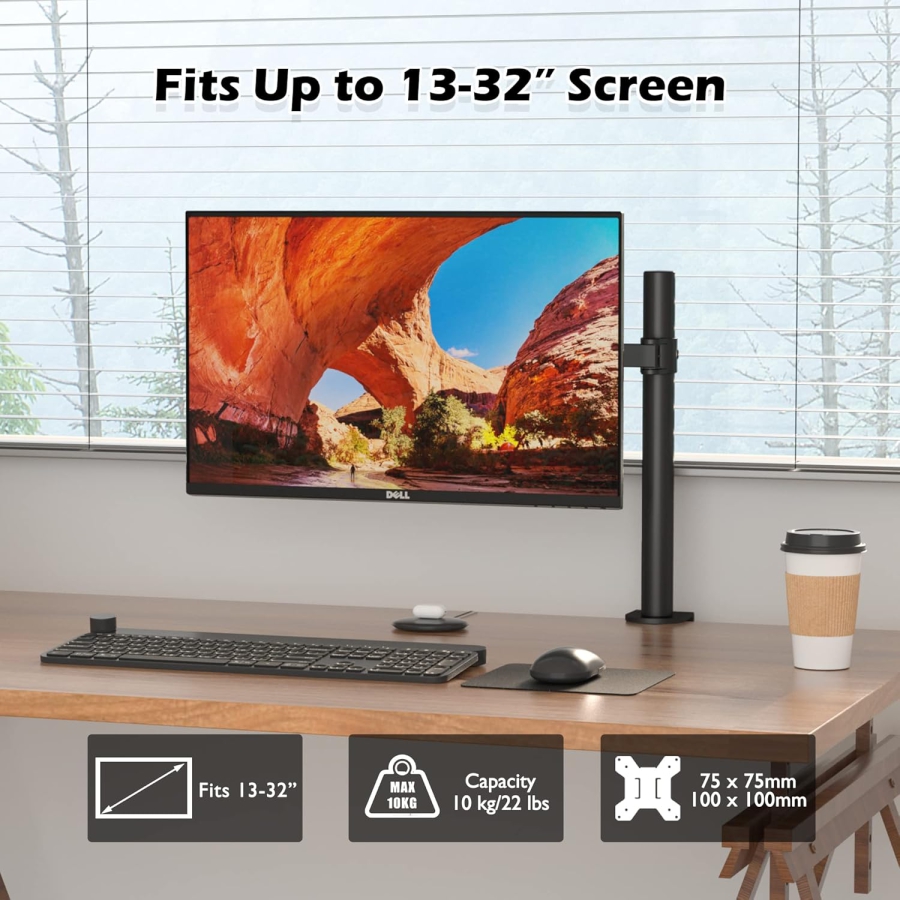

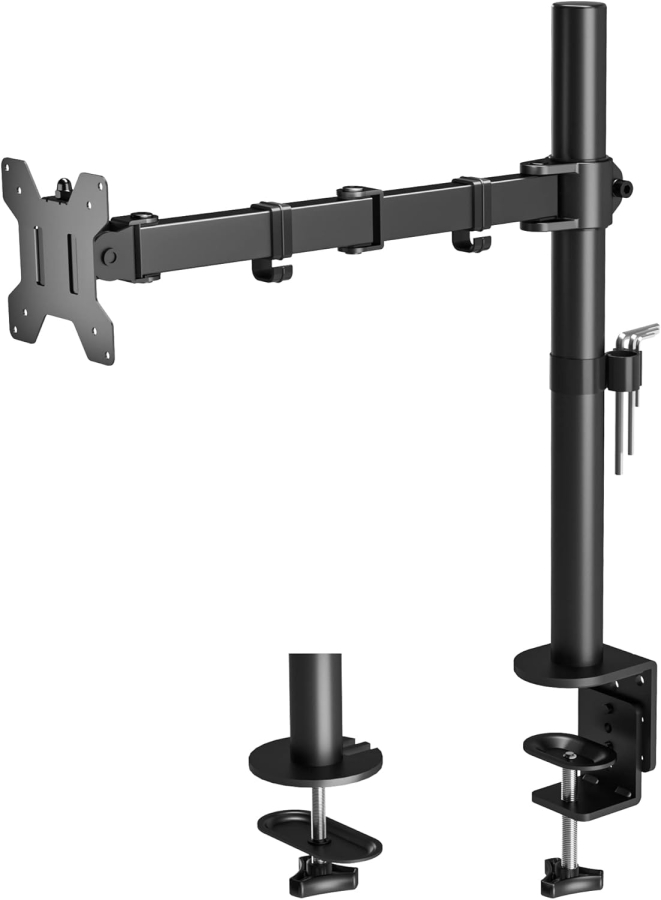

The BONTEC monitor arm for 13–32 inch monitors is a sturdy desk mount for one monitor weighing up to 10 kg. The screen can be tilted, swiveled and rotated 360°.

The mount is suitable for monitors with VESA 75x75 mm or VESA 100x100 mm. Installation can be carried out either with a C-clamp or through-desk mounting.

What setups is this monitor arm suitable for?

The BONTEC monitor arm is suitable for classic single-monitor desk setups. It replaces the original monitor stand and creates more free space on the desk. The screen can be positioned according to your seating position and viewing angle.

The mount is suitable for office, home office, gaming and workstations where the monitor needs to be regularly tilted, swiveled or rotated between landscape and portrait orientation.

Important product specifications at a glance

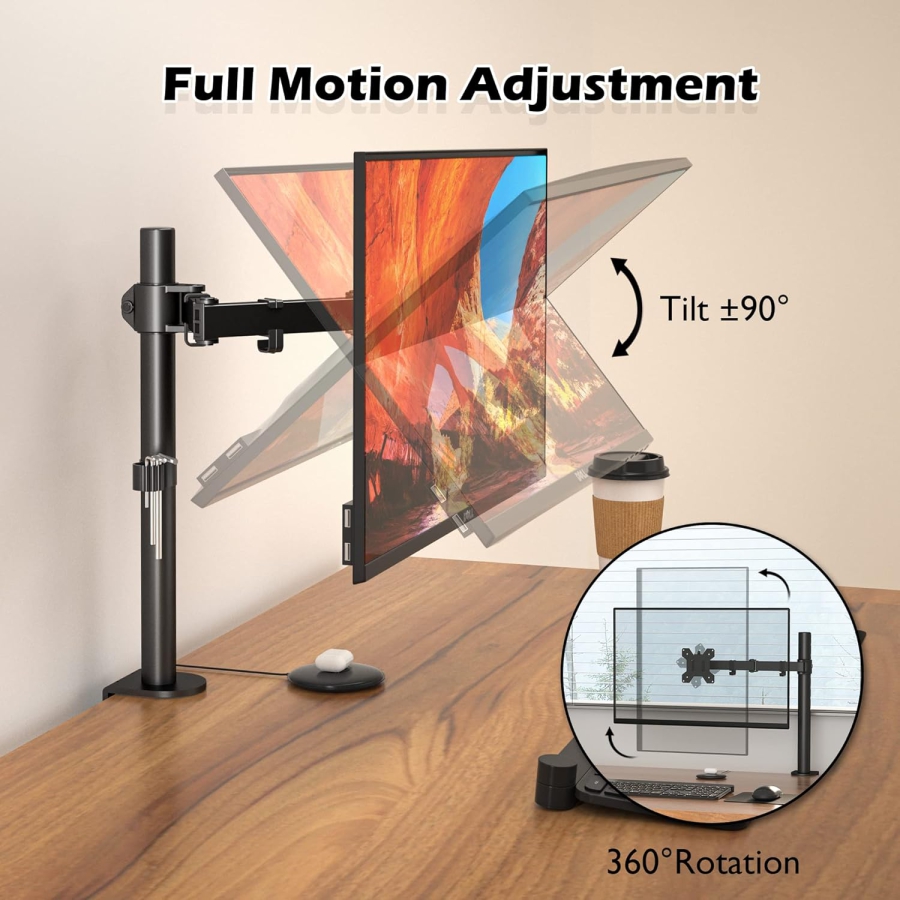

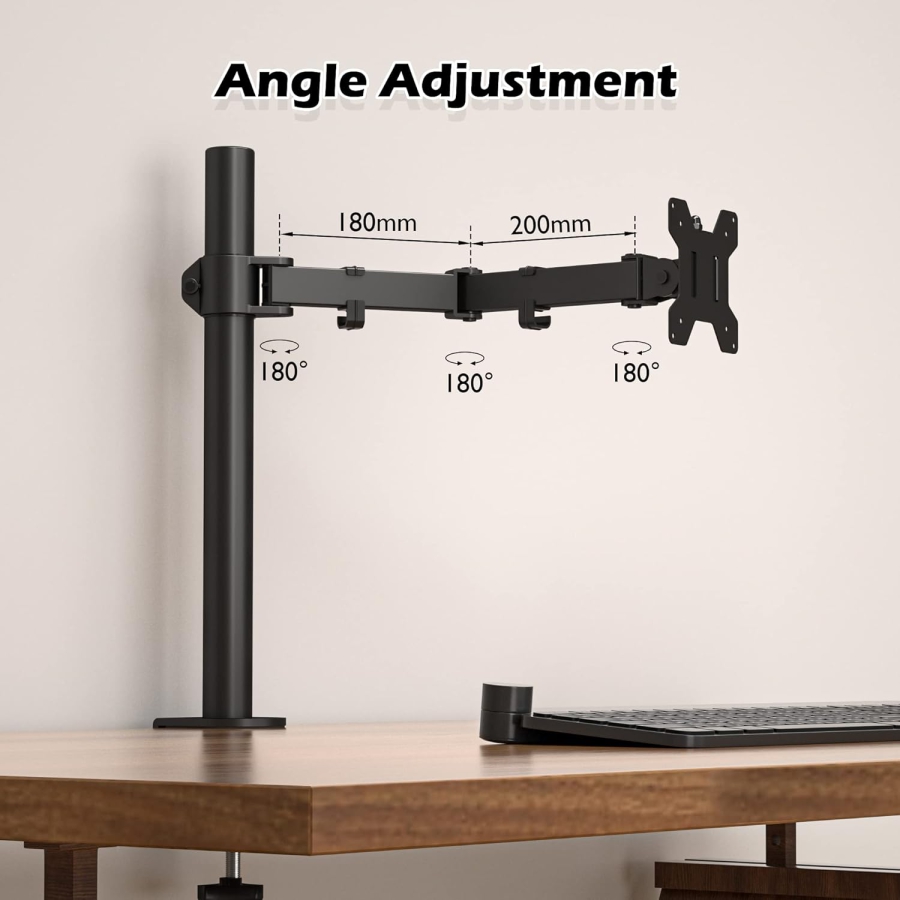

Tiltable, swivelable and rotatable 360°

The monitor can be tilted by +90° / -90°, swiveled by 180° and rotated by 360°. This allows the screen to be used in either landscape or portrait orientation depending on the application.

This flexibility is useful when the monitor needs to be positioned for different tasks, such as office applications, programming, document editing or gaming.

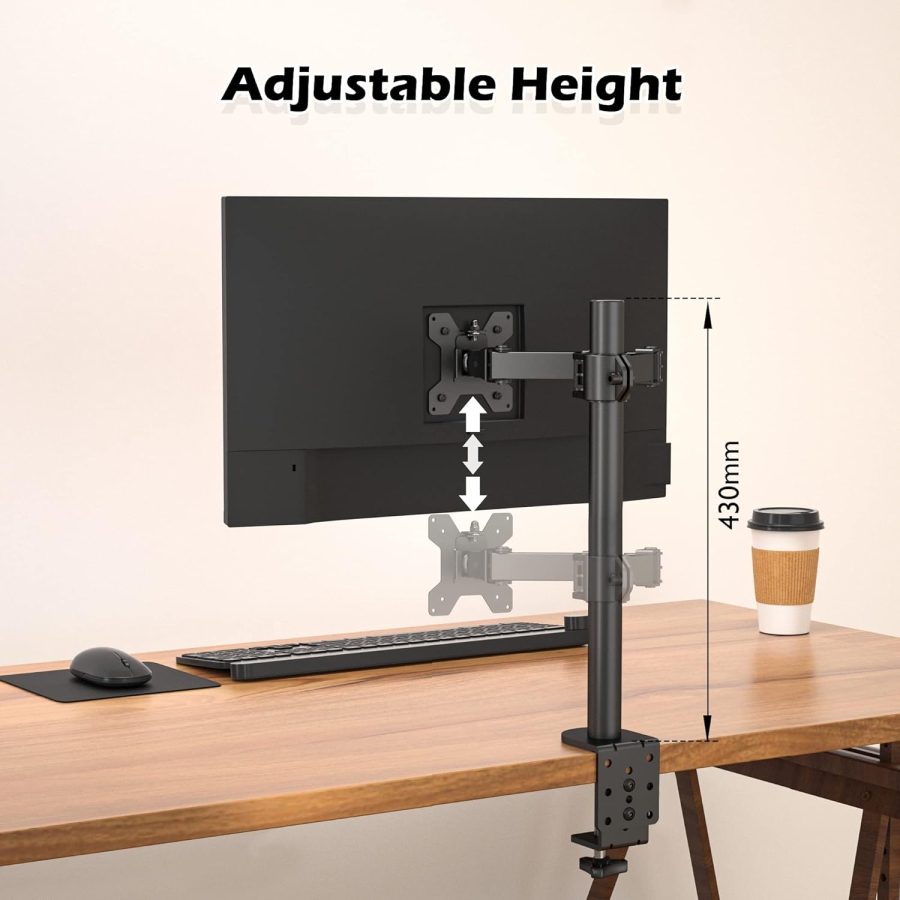

Manual height adjustment on the pole

The height of the monitor arm can be adjusted on the pole. To do this, loosen the clamp, move the monitor mount to the desired height and then secure it again.

The height adjustment range is 430 mm. The adjustment is manual and is not supported by a spring or gas lift. This makes the mount particularly suitable for setups where the height does not need to be adjusted constantly.

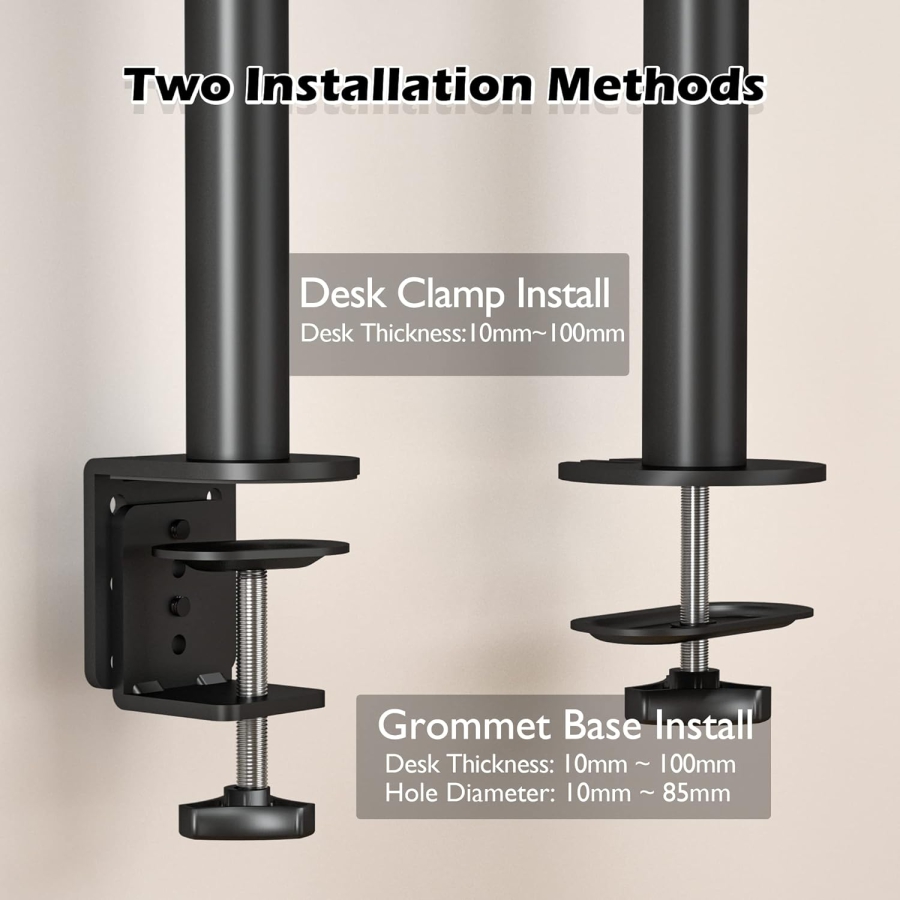

C-clamp or through-desk mounting

The BONTEC monitor arm can be attached to the edge of the desk using a C-clamp. This mounting method is suitable for desk tops with a thickness of 10 to 100 mm.

Alternatively, through-desk mounting is possible. This mounting method is also suitable for desk tops from 10 to 100 mm. The suitable hole diameter is 10 to 85 mm.

Before purchasing, you should check the desk thickness, desk edge, existing hole and desired mounting position. It is also important to ensure that there is enough space underneath the desk for the mounting hardware.

Check VESA 75x75 and 100x100

The monitor arm is designed for monitors with VESA 75x75 mm or VESA 100x100 mm. The removable VESA plate makes installation easier because it can first be attached to the monitor and then mounted onto the arm.

• • VESA 75x75: Hole spacing of 75 mm horizontally and 75 mm vertically.
• • VESA 100x100: Hole spacing of 100 mm horizontally and 100 mm vertically.
• • Important: The monitor must be within the specified load capacity of up to 10 kg.

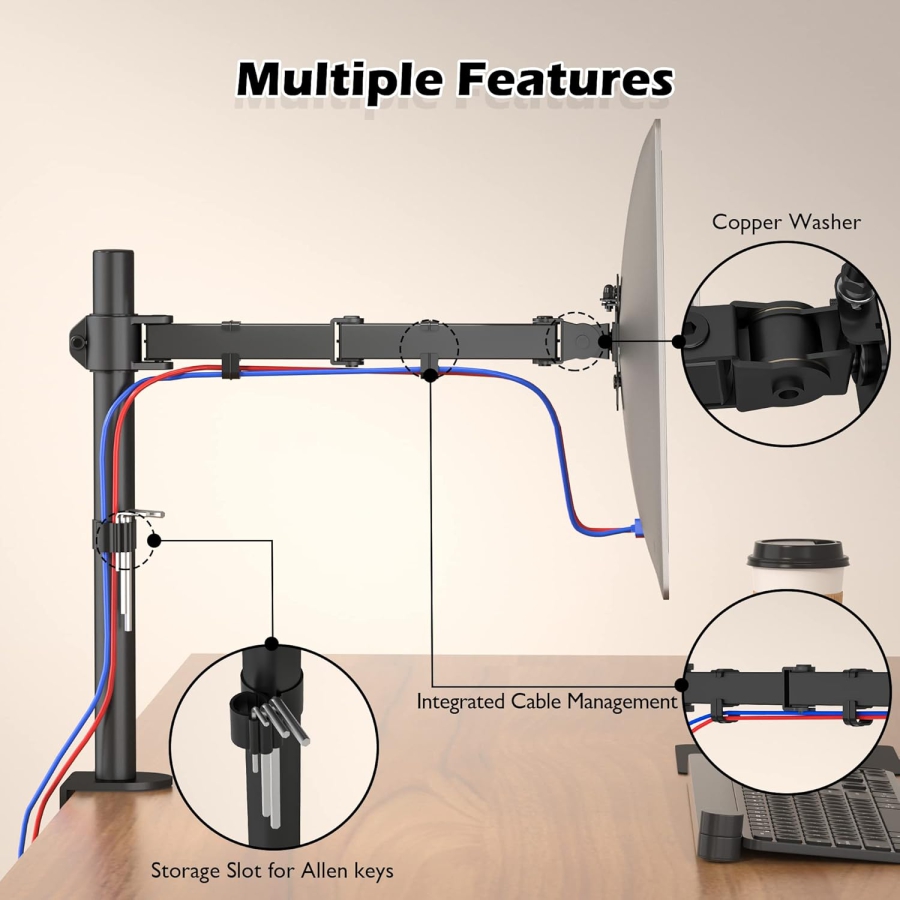

Cable management with plastic clips

Plastic clips are provided on the monitor arm for cable routing. They allow monitor and power cables to be routed along the mount.

The cables are not completely concealed, but they can be routed more neatly along the arm. This is particularly helpful on small desks or visible workstations.

When the monitor does not fit directly

Not every monitor can be mounted directly to a VESA mount. Some monitors do not have a VESA mounting interface, have a recessed back or feature a hole pattern that does not directly match the mount.

• • No VESA mounting on the monitor: You can find suitable solutions under VESA Adapters.
• • VESA plate does not sit flush: VESA spacers are suitable for this purpose.
• • Hole pattern does not match: For different VESA dimensions, VESA adapter plates can help.

Frequently asked questions about the BONTEC 13–32 inch monitor arm
