Ergounion RLAX E6 Monitor Arm 13–40" | 3–11 kg

Ergounion RLAX E6 Monitor Arm 13–40 Inches

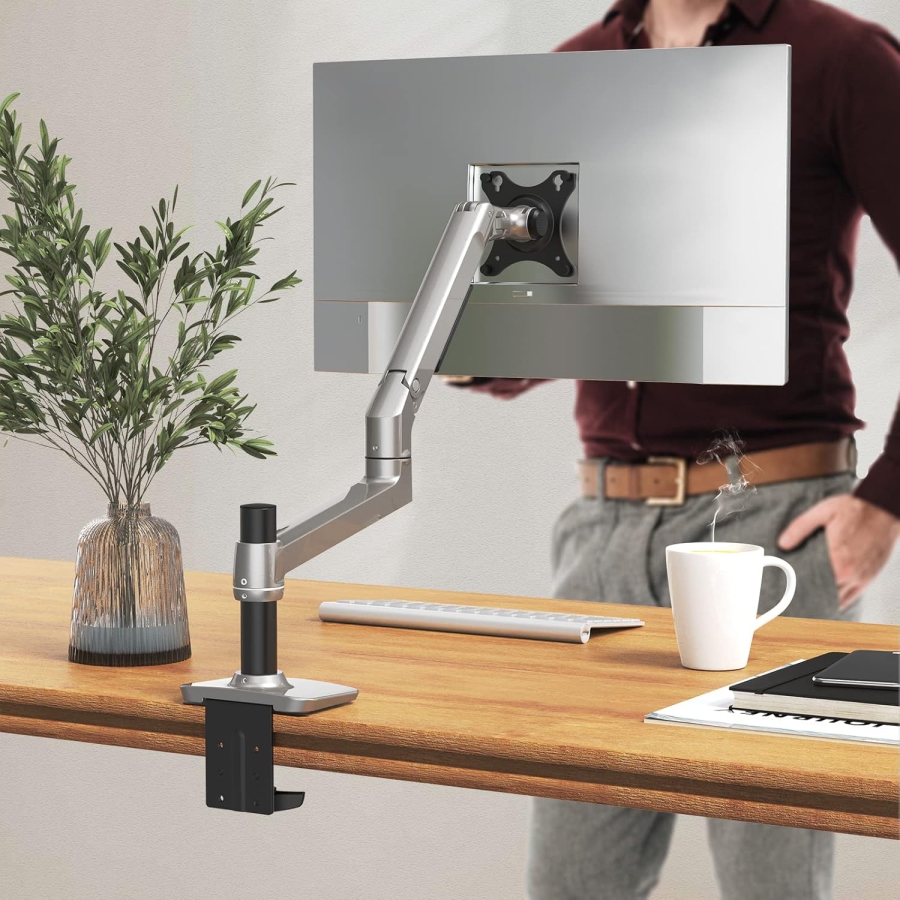

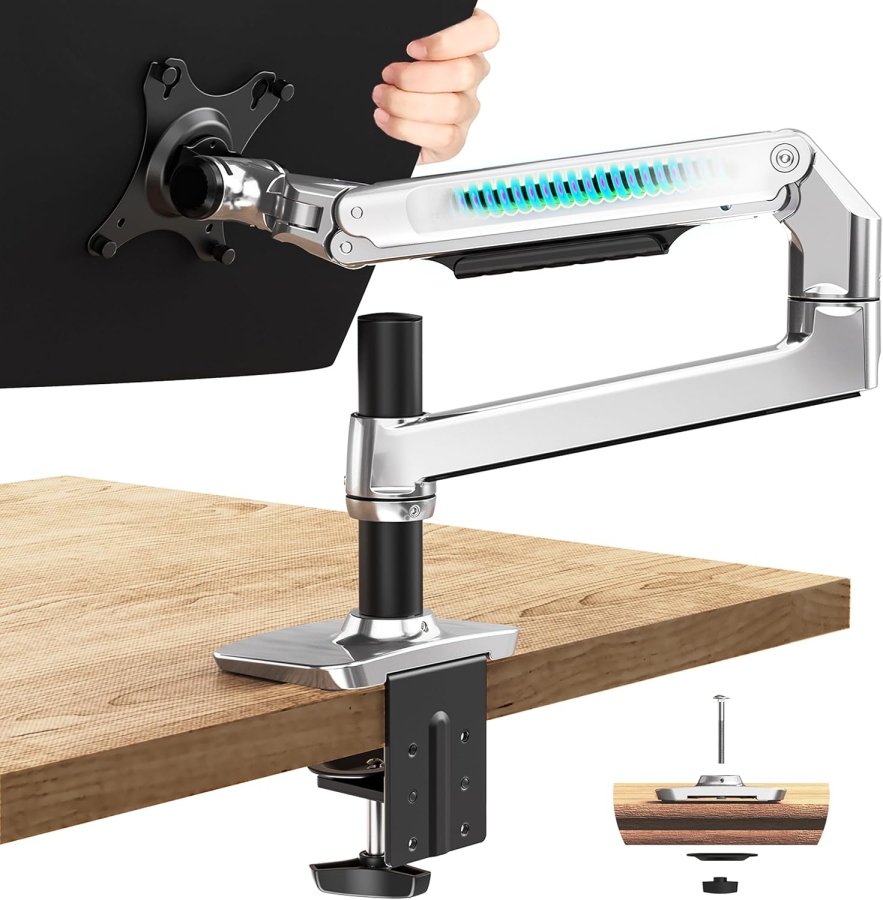

The Ergounion RLAX E6 Monitor Arm is a high-quality aluminum desk mount for one monitor from 13 to 40 inches. The mechanical spring supports height adjustment and is designed for monitors weighing 3 to 11 kg.

The monitor arm is suitable for flat and curved monitors with VESA 75x75 mm or VESA 100x100 mm. With its silver aluminum finish, large reach of approx. 630 mm, and mounting options using a C-clamp or grommet mount, the RLAX E6 is a strong solution for high-quality desk setups.

Aluminum Monitor Arm for Large Monitors

The Ergounion RLAX E6 is suitable for monitors from 13 to 40 inches. This covers standard office monitors as well as larger displays that may no longer be ideally supported by many basic monitor arms.

The load capacity is 3 to 11 kg. The monitor weight should always be checked without the stand. For large or curved monitors, the center of gravity, housing depth, and VESA position are also important.

Important Product Specifications at a Glance

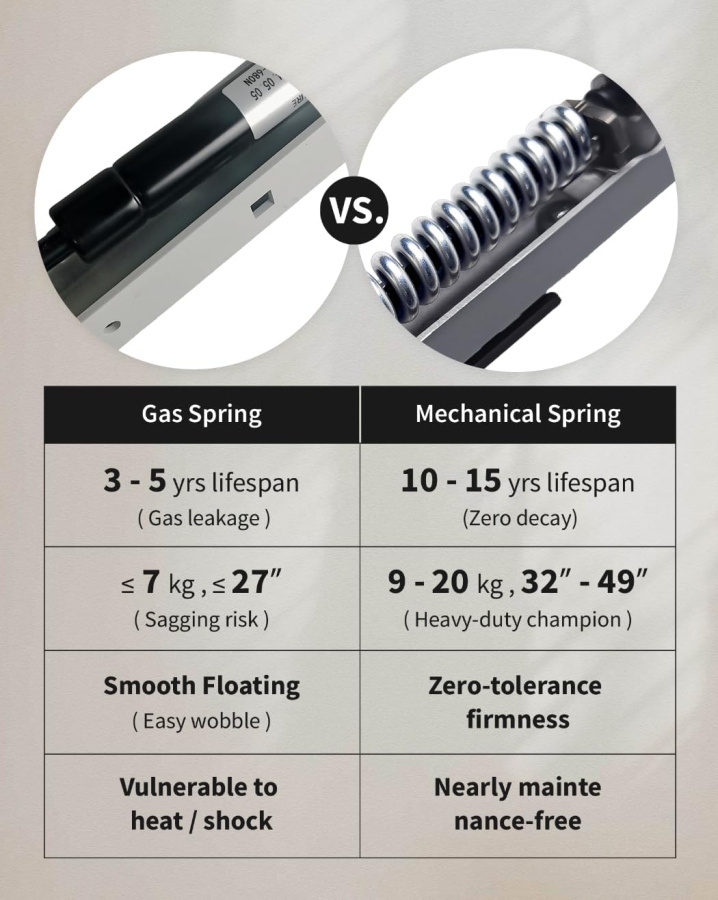

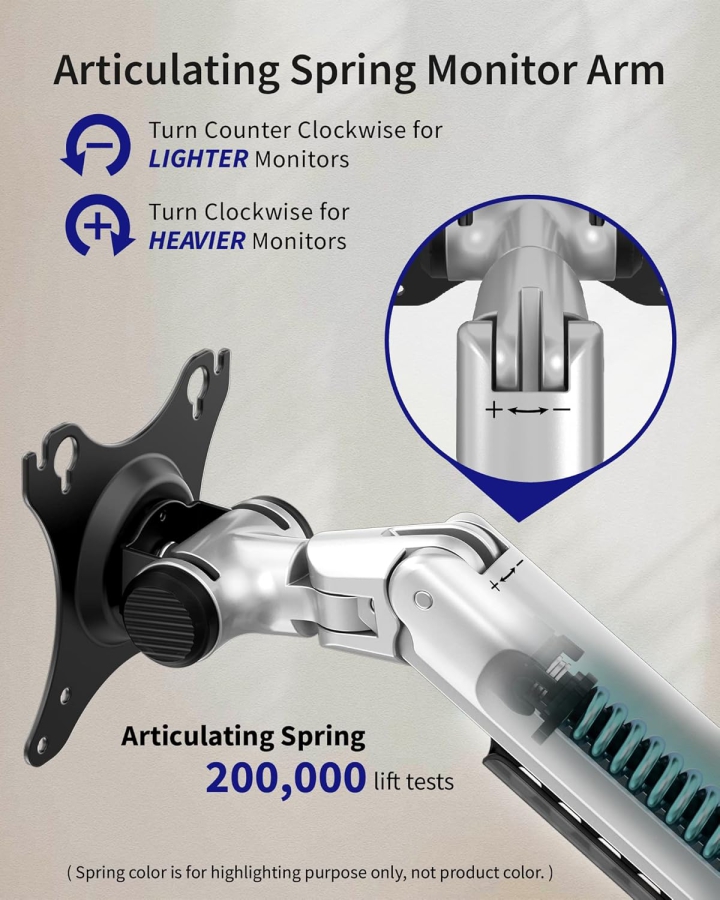

Mechanical Spring Instead of Gas Spring

The Ergounion RLAX E6 uses a mechanical spring. This supports the height adjustment of the monitor and enables flexible positioning within the specified weight range.

The suitable load range is 3 to 11 kg. If the monitor is significantly lighter or heavier, the spring support may not work as intended. The monitor weight should be checked without the stand.

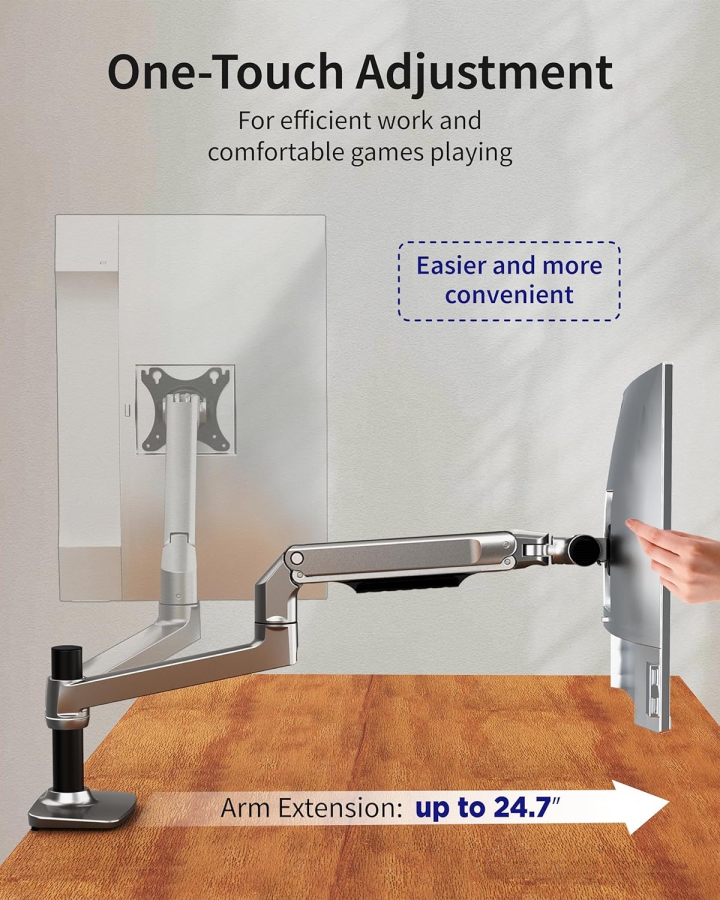

330 mm Height Adjustment and Approx. 630 mm Reach

The height adjustment range is 330 mm. This allows the monitor to be better adapted to your seating position, viewing angle, and working style.

The maximum reach is approx. 630 mm. This allows the monitor to be pulled closer, pushed further back, or positioned to the side. This is particularly useful for deeper desks or larger monitors.

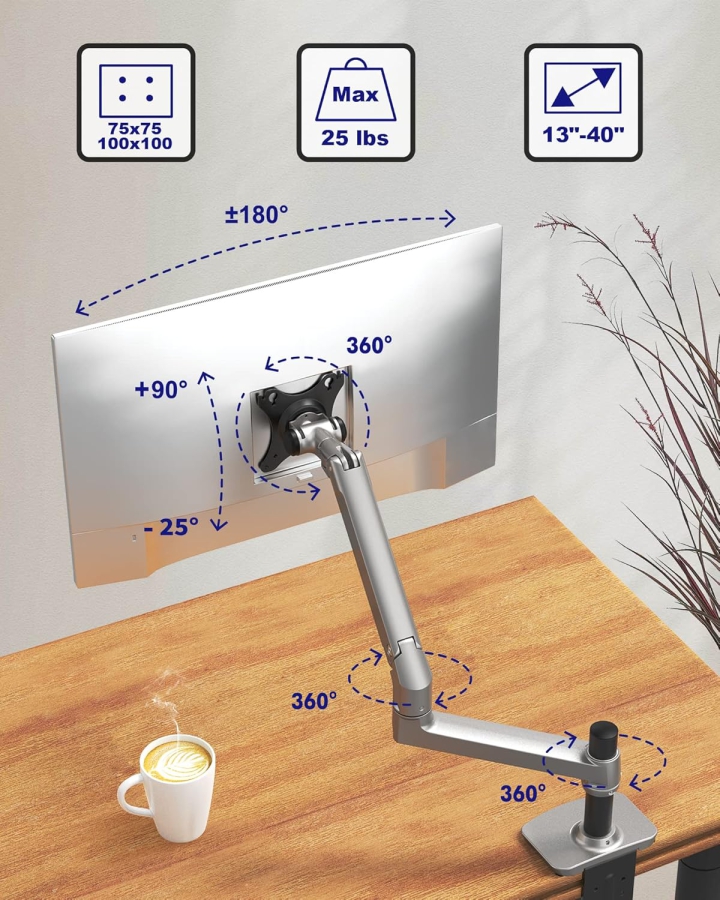

Tilt, Swivel, and 360° Rotation

The monitor can be tilted 90° downward and 25° upward. The swivel range is +180° / -180°. In addition, a 360° pivot rotation is possible.

This allows a suitable monitor to be used in landscape or portrait orientation. The flexibility is suitable for office, home office, gaming, trading, programming, and flexible workstation setups.

Silver Aluminum Design

The RLAX E6 is made of aluminum and features a silver aluminum finish. This gives the monitor arm a more premium and lightweight appearance compared with many standard black steel mounts.

The design works particularly well with light-colored desks, modern setups, and workstations where the monitor arm remains visible.

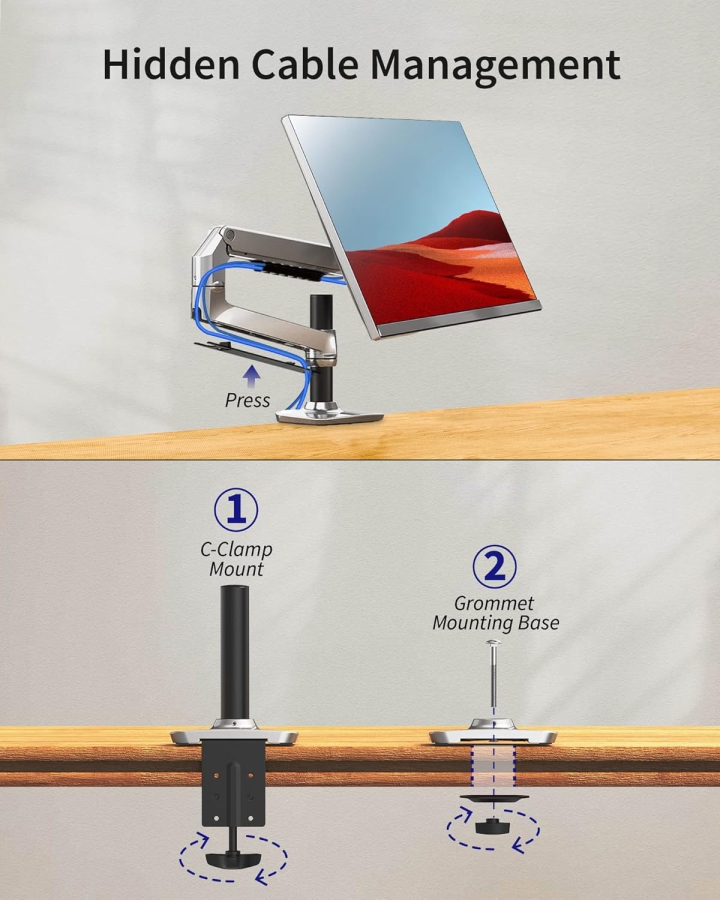

C-Clamp or Grommet Mount

The Ergounion RLAX E6 can be attached to the edge of the desk using the included C-clamp. The C-clamp is suitable for desk tops with a thickness of approx. 10 to 61 mm.

Alternatively, a grommet mount can be used. This is suitable for desk tops up to approx. 57 mm thick. The required hole diameter is at least 8 mm.

Both mounting options are included in the package. Before purchasing, check the desk thickness, desk edge, existing mounting hole, and available space underneath the desk.

VESA 75x75 and 100x100 with Mounting Slots

The monitor arm is suitable for monitors with VESA 75x75 mm or VESA 100x100 mm. The VESA plate is permanently attached to the arm but features large mounting slots.

This allows the upper screws to be attached to the monitor first and then the monitor to be hooked into the mount. VESA thumb screws are included.

• • VESA 75x75: Hole spacing of 75 mm horizontally and 75 mm vertically.
• • VESA 100x100: Hole spacing of 100 mm horizontally and 100 mm vertically.
• • Important: Monitor size, monitor weight, VESA dimensions, housing shape, and center of gravity must be compatible with the mount.

Cable Management with Integrated Clips

Cable management is provided by integrated elongated clips at the top and bottom of the monitor arm. Power and signal cables can therefore be routed more neatly along the arm.

This helps keep the desk more organized and reduces the amount of visible cabling across the work surface.

What's Included

The package includes the Ergounion RLAX E6 monitor arm, C-clamp, grommet mount, screws, tools, and instructions.

Both intended mounting methods are therefore included. No separate manufacturer's warranty is specified for this product.

If the Monitor Does Not Fit Directly

Not every monitor can be mounted directly using a VESA mount. Some monitors have no VESA mounting holes, a recessed rear panel, or a hole pattern that does not directly match the mount.

• • No VESA on the monitor: Suitable solutions can be found under VESA Adapters.
• • VESA plate does not sit flush: VESA spacers are suitable for this.
• • Hole pattern does not match: For different VESA dimensions, VESA adapter plates can help.

Frequently Asked Questions About the Ergounion RLAX E6 Monitor Arm
