Invision MX200 Monitor Arm 19–32" | 2–9 kg

Invision MX200 Monitor Arm 19–32 Inches

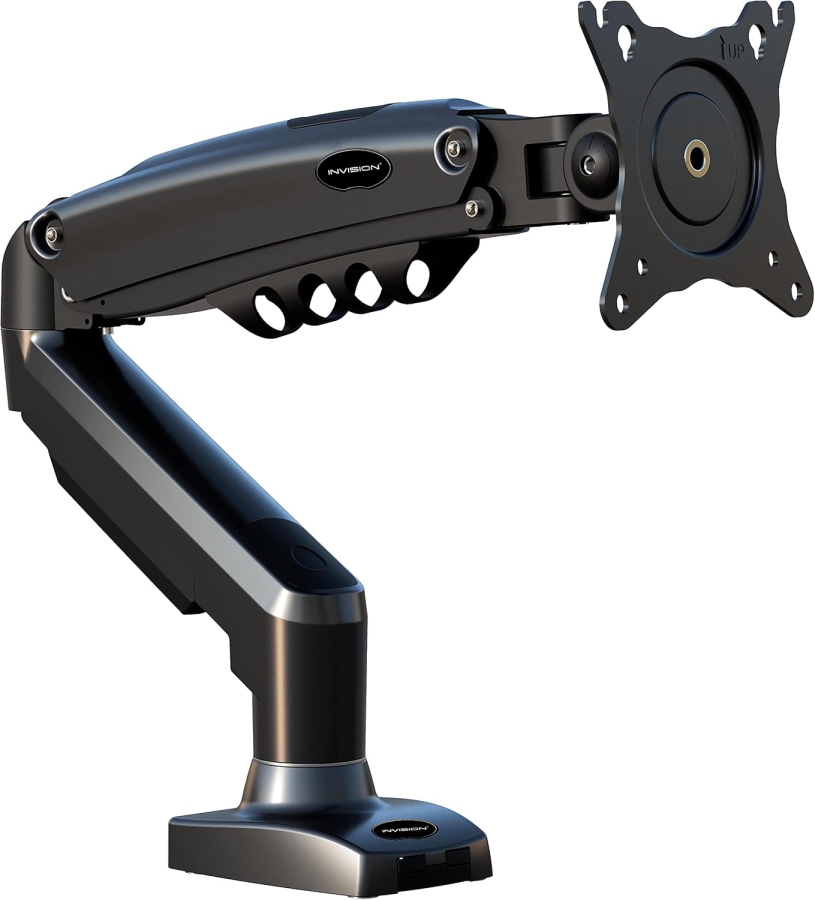

The Invision MX200 Monitor Arm is a height-adjustable desk mount for one monitor from 19 to 32 inches. The gas spring supports height adjustment and is designed for monitors weighing 2 to 9 kg.

The mount is suitable for monitors with VESA 75x75 mm or VESA 100x100 mm. It can be attached either with a C-clamp or using through-desk mounting.

Which setups is the Invision MX200 suitable for?

The Invision MX200 is designed for desk setups with a single monitor. It replaces the original monitor stand and creates more free space on the desk.

With its gas spring, 530 mm reach and flexible positioning, the monitor arm is suitable for office, home office, gaming and workstations where the screen is regularly repositioned.

Important product specifications at a glance

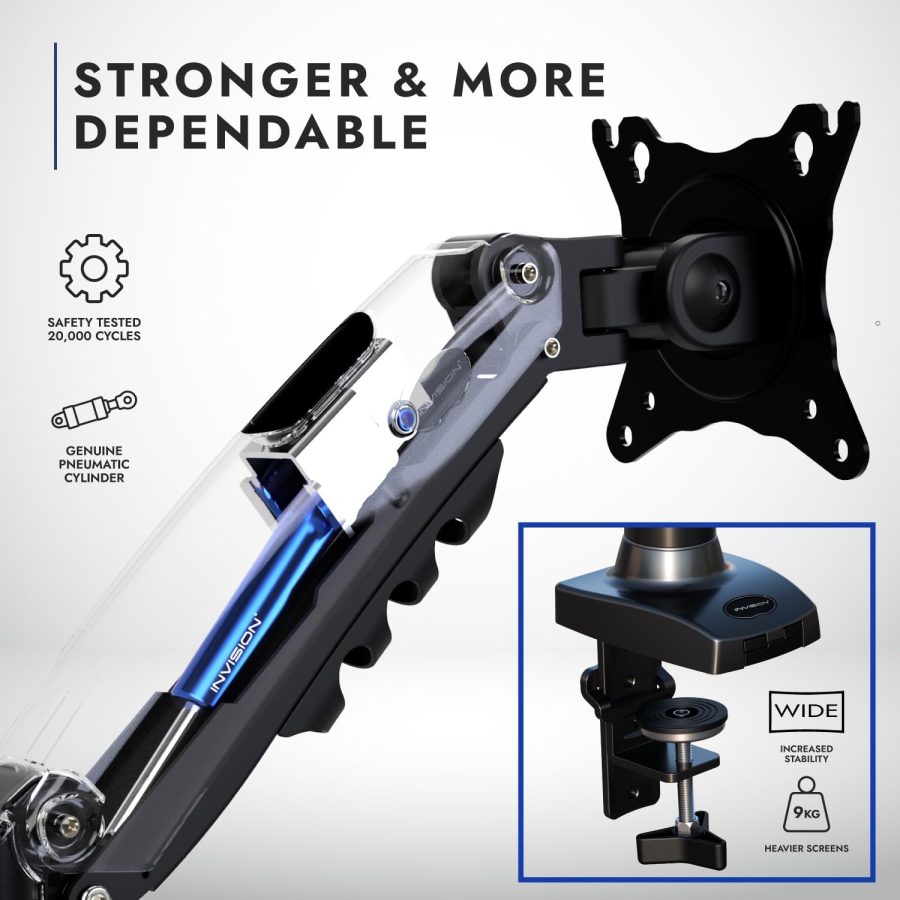

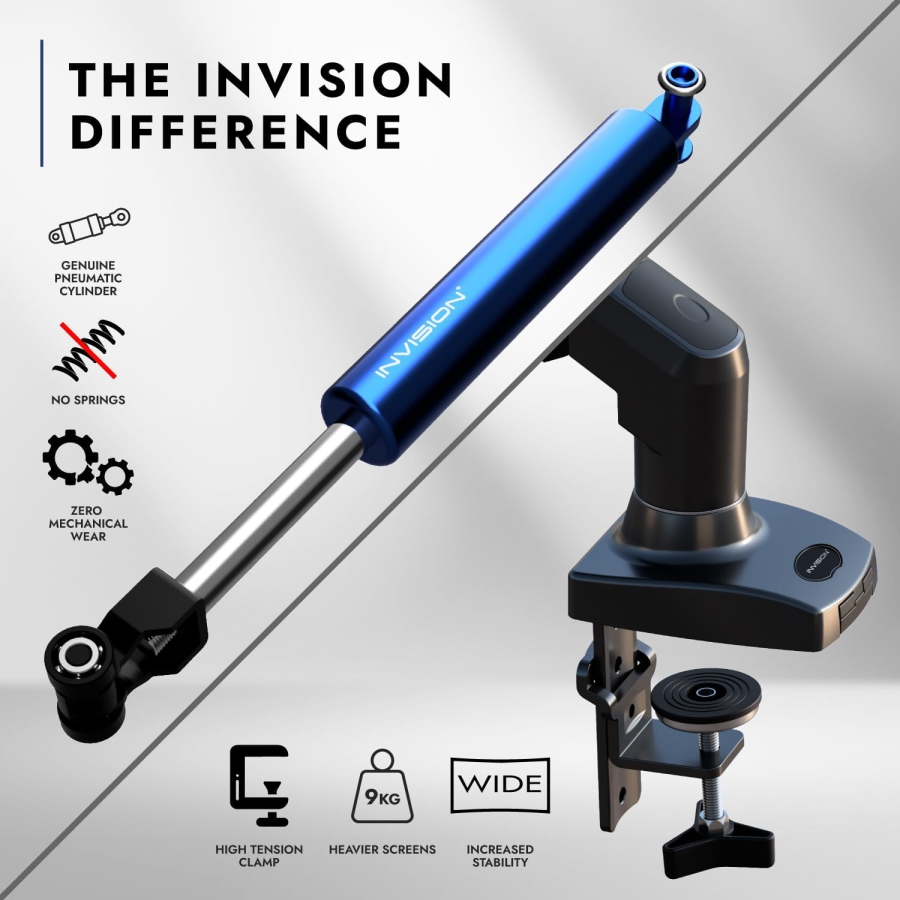

Gas spring for monitors weighing 2 to 9 kg

The gas spring supports height adjustment of the monitor. The suitable weight range is 2 to 9 kg. The monitor weight should be checked without the stand.

When the monitor weight and adjustment are within the correct range, the screen can be positioned more easily at the desired height and used in the preferred position.

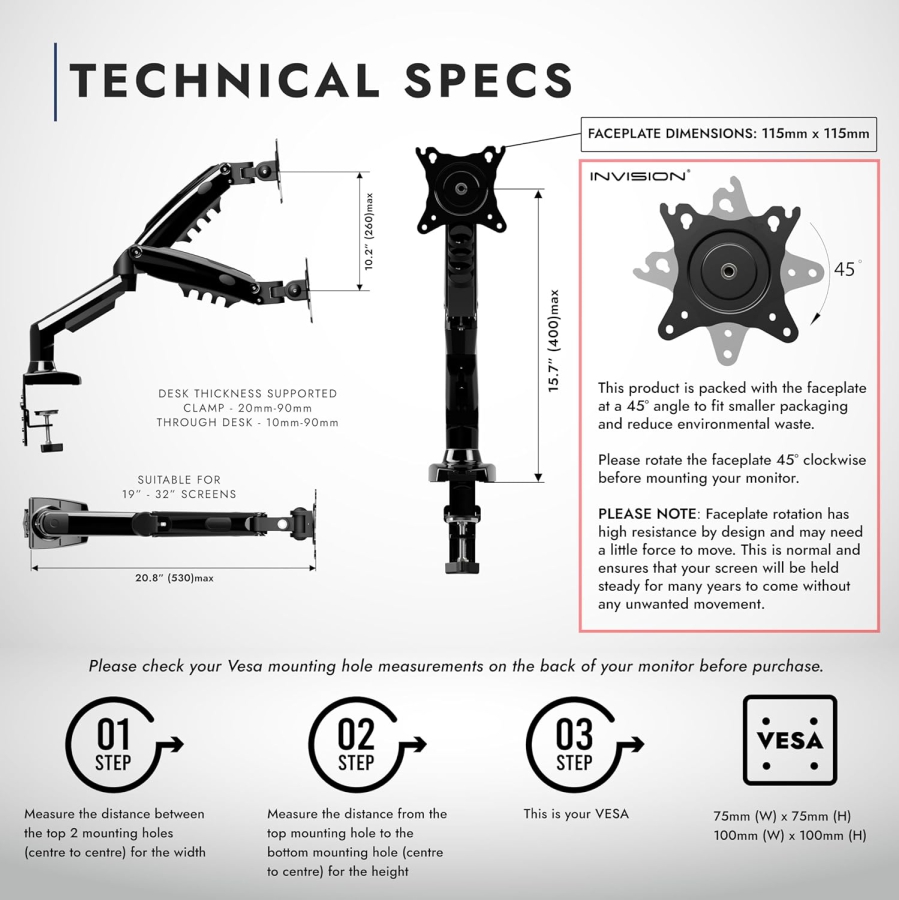

260 mm height adjustment and 530 mm reach

The Invision MX200 offers a 260 mm height adjustment range. The maximum height from the desk surface to the VESA center is 400 mm.

The maximum reach is 530 mm. This allows the monitor to be pulled closer, pushed further back or positioned to the side.

Tilt, swivel and 360° rotation

The monitor can be tilted by +85° / -30° and swiveled by +90° / -90°. It also supports 360° rotation.

This allows the screen to be positioned according to the user's seating position and the task at hand. A suitable monitor can also be used in portrait orientation.

C-clamp or through-desk mounting

The C-clamp is suitable for desk surfaces with a thickness of 20 to 90 mm.

Alternatively, through-desk mounting is available. This is suitable for desk surfaces from 10 to 90 mm thick. The required hole diameter is 10 mm.

Before purchasing, you should check the desk thickness, desk edge, existing hole and the available space underneath the desk.

Check VESA 75x75 and 100x100

The Invision MX200 is suitable for monitors with VESA 75x75 mm or VESA 100x100 mm. The VESA plate is non-removable but features larger upper hook-in holes.

This allows the upper screws to be attached to the monitor first and then hooked into the mount. The remaining screws can then be secured.

• • VESA 75x75: Hole spacing of 75 mm horizontally and 75 mm vertically.
• • VESA 100x100: Hole spacing of 100 mm horizontally and 100 mm vertically.
• • Important: Monitor size, weight, VESA dimensions and housing design must be compatible with the mount.

Cable management with large clips

Cable management is partially integrated and uses large clips on the monitor arm. Power and signal cables can therefore be routed more neatly along the arm.

This helps keep the workspace tidier and reduces the amount of cable running freely across the desk.

If the monitor does not fit directly

Not every monitor can be attached directly to a VESA mount. Some monitors do not have a VESA mounting pattern, have a recessed rear panel or use a mounting pattern that does not directly match the mount.

• • No VESA mounting pattern on the monitor: Suitable solutions can be found under VESA Adapters.
• • VESA plate does not sit flush: VESA Spacers are suitable for this.
• • Hole pattern does not match: For different VESA dimensions, VESA Adapter Plates can help.

Frequently asked questions about the Invision MX200 Monitor Arm
