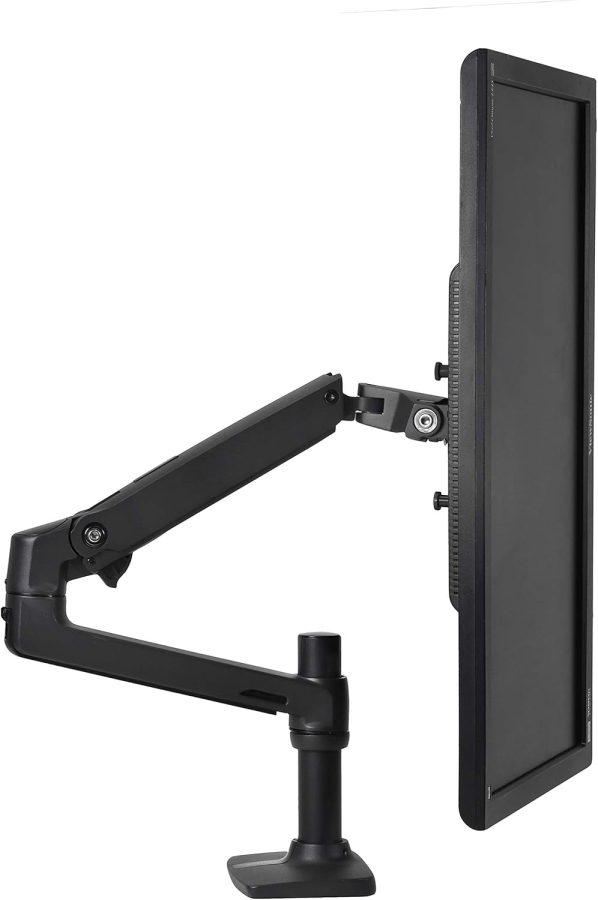

Ergotron LX Monitor Arm Black 34" | up to 11.3 kg

Ergotron LX Monitor Arm Black up to 34 Inches

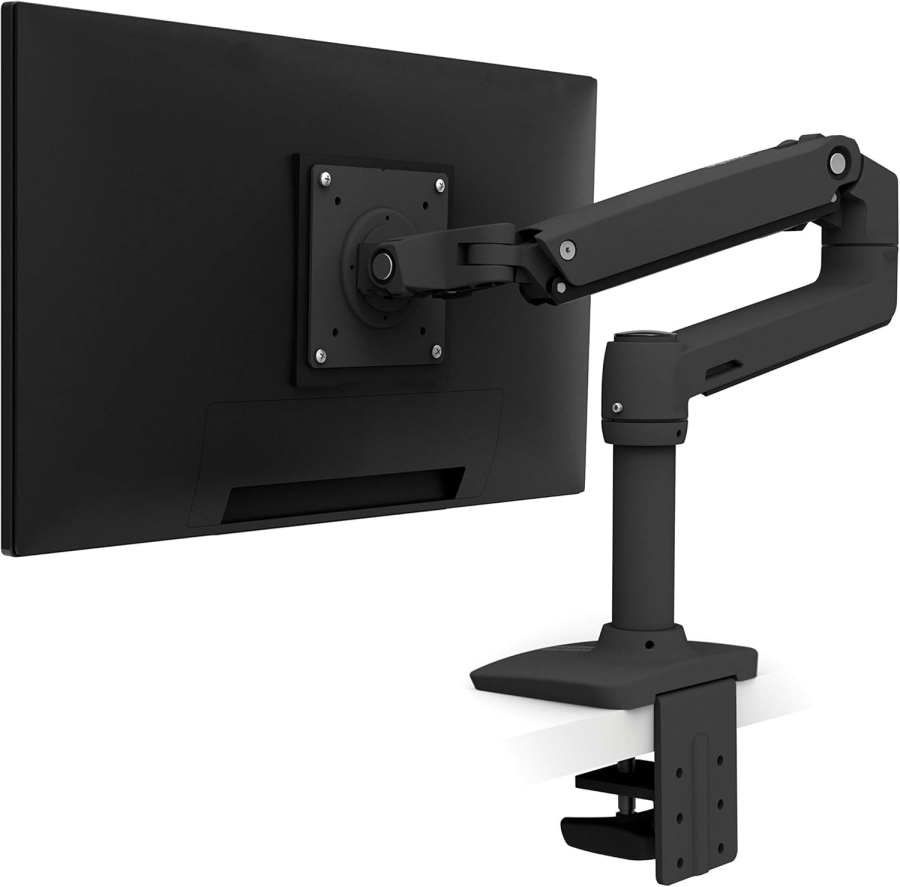

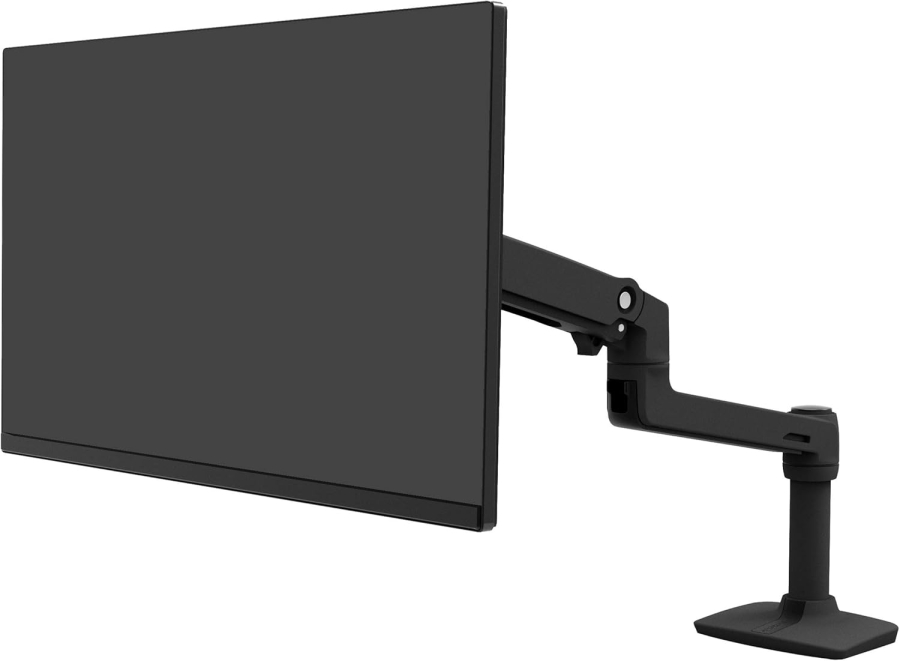

The Ergotron LX Monitor Arm in Black is a high-quality desk mount for a monitor up to 34 inches. It is designed for monitors weighing 3.2 to 11.3 kg and is suitable for professional workstations, home office setups, and desks where stability, ergonomics, and durable mechanics are important.

The patented Constant Force Technology supports smooth monitor positioning. With 330 mm of height adjustment, 650 mm of extension, fully integrated cable management, C-clamp, grommet mount, and a 10-year manufacturer's warranty, the Ergotron LX is a premium solution for demanding desk setups.

Premium Monitor Arm for Professional Setups

The Ergotron LX is designed for workstations where the monitor should not only be securely mounted but also regularly adjusted for ergonomic positioning. The black version is particularly well suited to dark monitors, black desk frames, and professional office or gaming setups.

Thanks to its sturdy powder-coated steel construction, wide adjustment range, and long manufacturer's warranty, the arm is especially suitable for users looking for a durable monitor mount for everyday use.

Key Product Specifications at a Glance

Constant Force Technology for Smooth Adjustment

The Constant Force Technology is one of the key features of the Ergotron LX. It supports monitor movement throughout the adjustment range and allows the screen to be positioned smoothly.

This is particularly useful when the monitor is regularly repositioned, for example when switching between focused work, meetings, portrait orientation, or different seating positions. The suitable weight range is 3.2 to 11.3 kg. The monitor weight should be checked without the stand.

330 mm Height Adjustment and 650 mm Extension

The Ergotron LX offers 330 mm of height adjustment. The maximum height from the desk surface to the VESA center is approximately 440 mm.

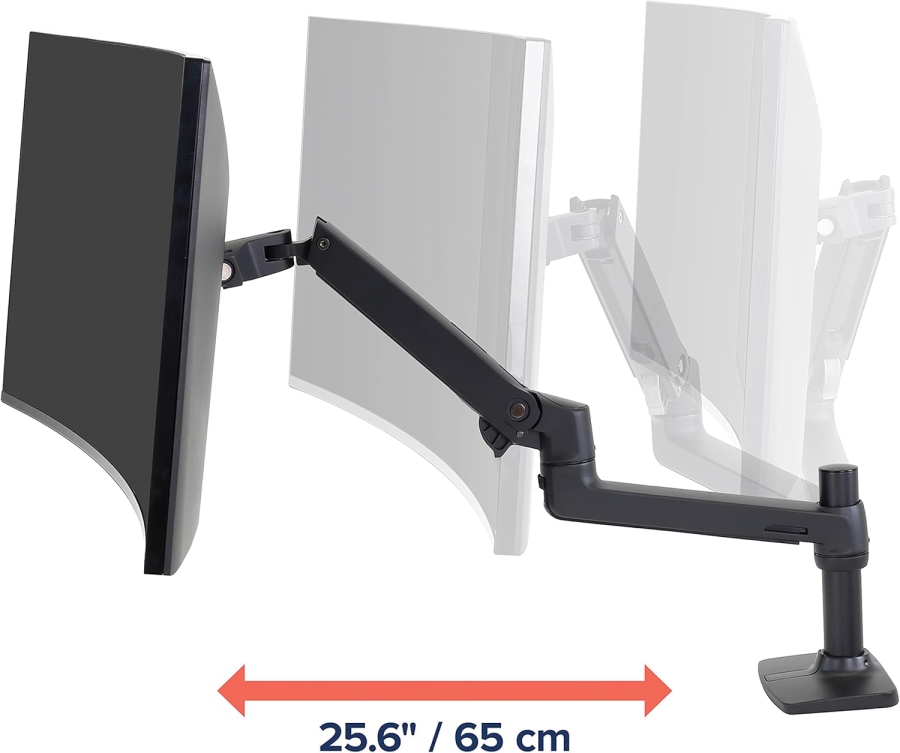

With an extension of up to 650 mm, the monitor can be pulled closer, pushed farther back, or positioned to the side. This is useful for deeper desks and workstations where the screen needs to be used flexibly.

Tilt, Swivel, and 360° Rotation

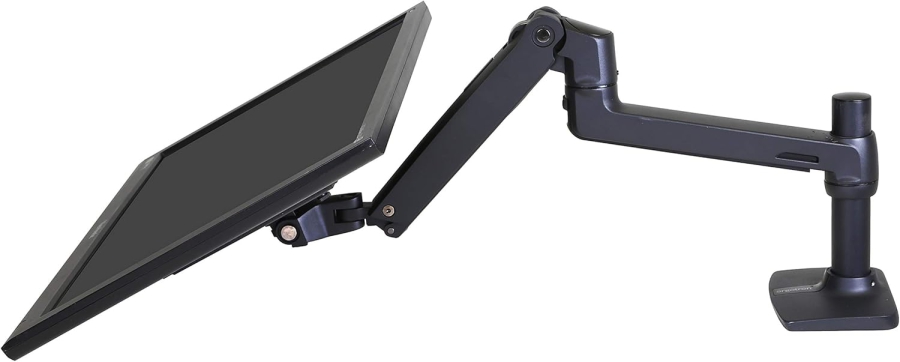

The monitor can be tilted by +70° / -5°. The arm can swivel up to 180°. In addition, it offers 360° rotation.

This allows a suitable monitor to be used in either landscape or portrait orientation. The range of movement helps position the screen according to the seating position, task, and viewing direction.

Black Powder-Coated Finish

The black, powder-coated finish works well with dark monitors, black desk frames, and modern workstations. The monitor arm remains a visible part of the setup while creating a clean and professional appearance through its uniform color.

The material consists of powder-coated steel. This makes the arm suitable for long-term use at the desk.

C-Clamp and Grommet Mount Included

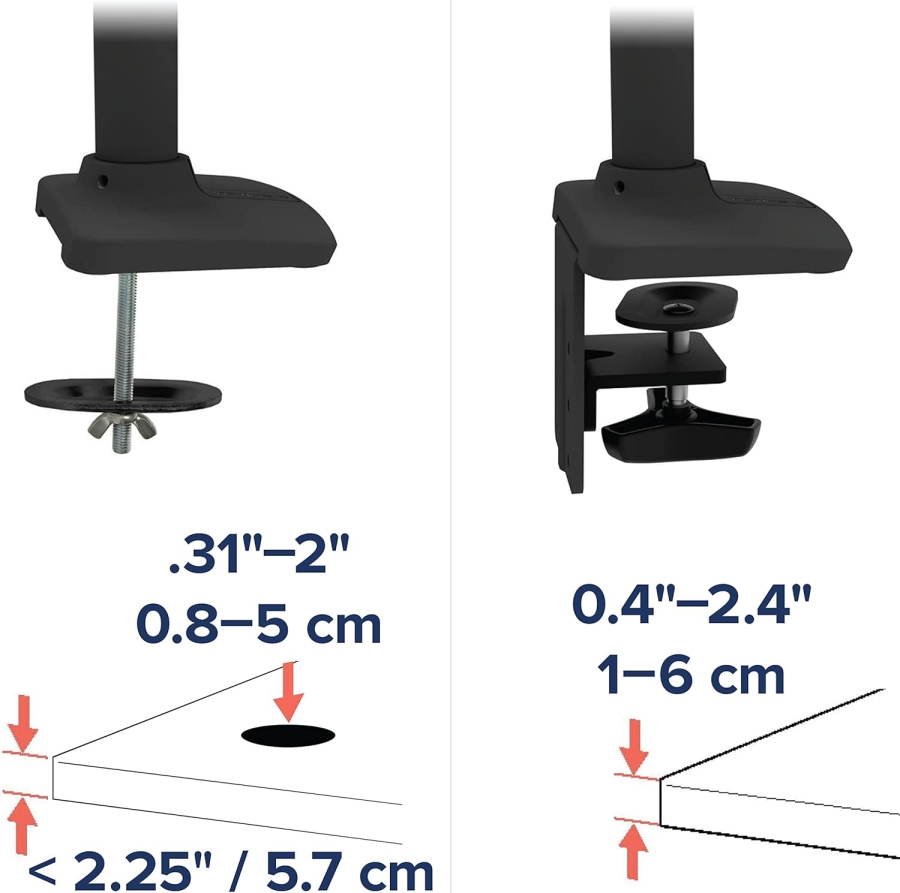

The Ergotron LX Black can be attached to the edge of the desk using the included C-clamp. The C-clamp is suitable for desk surfaces with a thickness of 10 to 60 mm.

Alternatively, a grommet mount can be used. This is suitable for desk surfaces from 8 to 50 mm thick. The compatible hole diameter is 8 to 51 mm.

Both mounting options are included in the package. Before purchasing, check the desk thickness, desk edge, existing hole, and the available space underneath the desk.

VESA 75x75 and 100x100 with Hand Screws

The Ergotron LX is suitable for monitors with VESA 75x75 mm or VESA 100x100 mm. Mounting is not performed using a removable quick-release plate, but rather with VESA hand screws.

• • VESA 75x75: Hole spacing of 75 mm horizontally and 75 mm vertically.
• • VESA 100x100: Hole spacing of 100 mm horizontally and 100 mm vertically.
• • Important: Monitor size, monitor weight, VESA dimensions, enclosure depth, and center of gravity must be compatible with the mount.

Fully Integrated Cable Management

Cable management is fully integrated into the Ergotron LX. Power and signal cables can be routed neatly along the arm.

This creates a tidier workstation and keeps cables less visible across the desk surface. Especially with a high-quality monitor arm, clean cable routing is an important part of the overall setup.

10-Year Manufacturer's Warranty

The Ergotron LX is specified with a 10-year manufacturer's warranty. This is an important difference compared with many basic monitor arms and reflects its positioning as a premium monitor mount.

For a frequently used workstation, a long-term warranty is a relevant purchasing factor because the monitor arm remains in use for many years and is regularly adjusted.

Package Contents

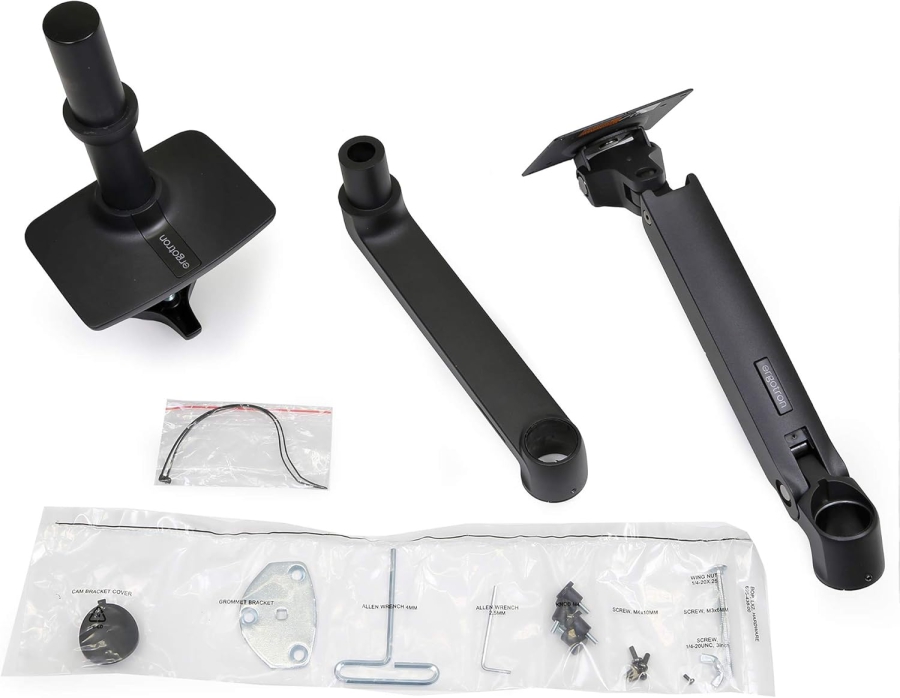

The package includes the Ergotron LX monitor arm, desk clamp, grommet mount, screws, tools, and instructions.

This means both intended mounting options are included: mounting to the desk edge using the C-clamp and mounting through an existing or suitable desk hole.

If the Monitor Does Not Fit Directly

Not every monitor can be mounted directly to a VESA mount. Some monitors do not have a VESA mounting interface, have a recessed rear panel, or use a hole pattern that does not directly match the mount.

• • No VESA on the monitor: Suitable solutions can be found under VESA Adapters.
• • VESA plate does not sit flush: For this purpose, suitable VESA Spacers are available.
• • Hole pattern does not match: For different VESA dimensions, VESA Adapter Plates can help.
