VESA Spacer 75x75

VESA 75x75 Spacer with 30 mm Distance

The VESA 75x75 spacer creates a 30 mm distance between the back of the monitor and the VESA plate of the mount. It is suitable if your monitor has a VESA 75x75 mm mounting pattern, but the monitor mount cannot sit flush against the monitor.

Typical causes include recessed VESA threads, a curved or uneven monitor back, or a housing edge around the VESA mounting area. The spacer moves the mounting surface outward so that the VESA plate of the monitor arm can be mounted securely.

When do you need this VESA spacer?

This spacer is designed for monitors with a VESA 75x75 mm mounting pattern. It is used when the mounting pattern itself is correct, but the mount cannot be installed directly because of the shape of the monitor housing.

• • VESA plate does not sit flush: The mount comes into contact with the back of the monitor or a housing edge.
• • Threads are recessed: The mounting points are located deeper inside the housing and are difficult to reach with a standard mount.
• • Monitor arm does not fit despite VESA compatibility: The VESA mounting pattern is present, but the mounting surface is not freely accessible.

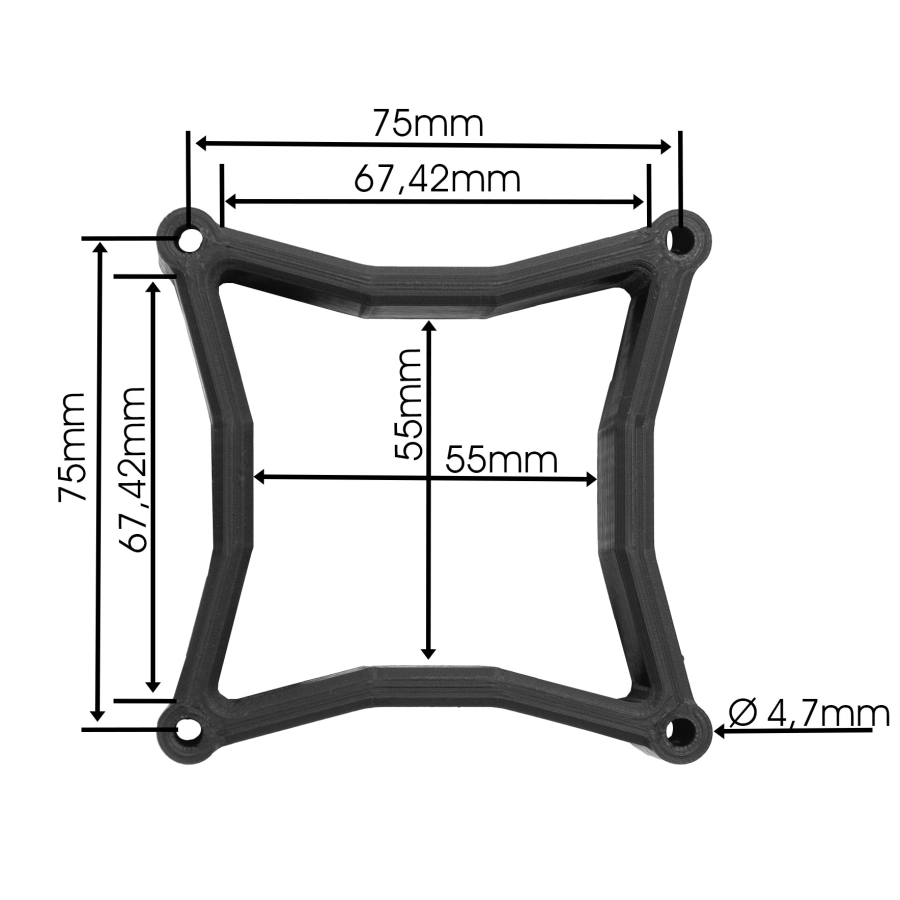

Suitable for VESA 75x75 mm

VESA 75x75 means that the mounting holes have a 75 mm distance from each other both horizontally and vertically. Always measure the distance from the center of one hole to the center of the other.

This spacer is not designed for VESA 100x100. If your monitor has a 100 mm hole spacing, choose the appropriate 100x100 spacer. This helps prevent incorrect installation and unnecessary purchases.

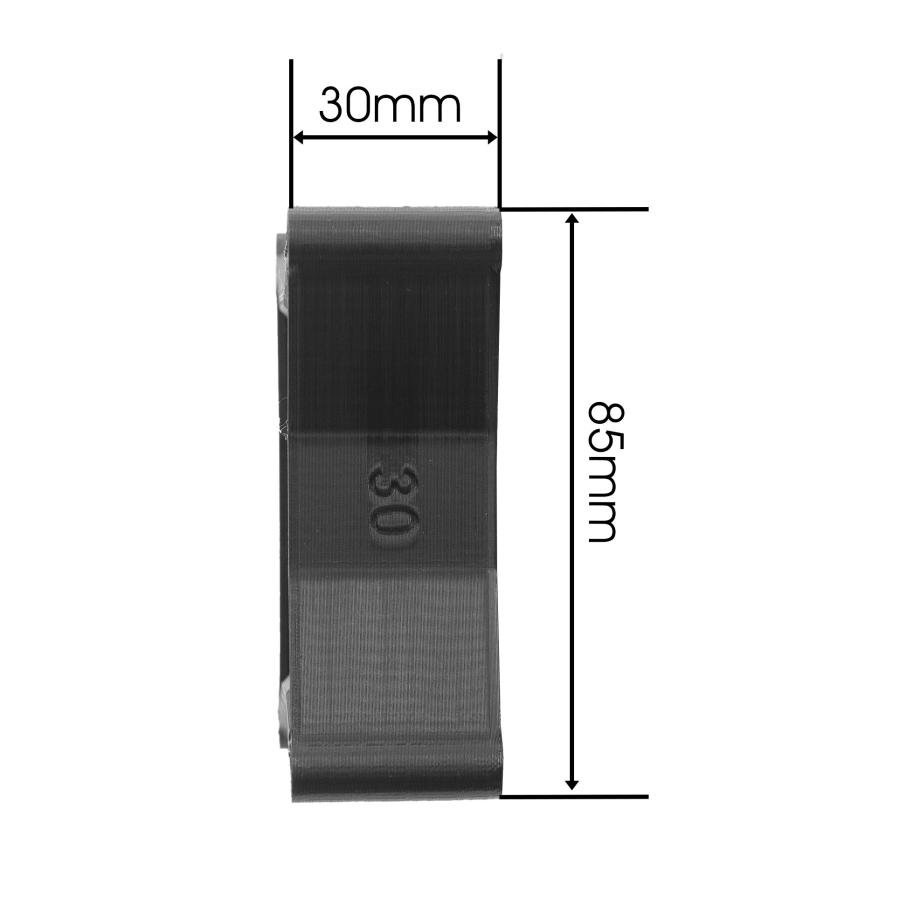

30 mm Distance for Recessed VESA Mounting Points

The 30 mm distance is useful when more space is needed between the back of the monitor and the VESA plate. This can be particularly important with monitors that have a recessed mounting area, curved housing, or a surrounding housing edge.

The spacer does not change the VESA mounting pattern. It does not turn VESA 75x75 into another size; it simply creates additional space between the monitor and the mount.

Also Suitable for Many Gaming and Curved Monitors

With curved and gaming monitors in particular, the VESA mounting area is often recessed or limited by a housing edge. In such cases, people often look for an adapter even though a spacer is actually what is needed.

A VESA spacer can also be useful for monitors such as the Samsung Odyssey G5 if the monitor has a VESA 75x75 mm mounting pattern but the mount cannot sit flush because of the housing design. Please always check the exact VESA size, thread depth, and screw length of your monitor before purchasing.

Includes Screws for Installation

The set is supplied including screws and mounting accessories. Before installation, you should still check whether the screw length and thread depth are suitable for your monitor.

The screws must engage securely without being screwed too deeply into the monitor. The monitor, spacer, mount, and screws must be mechanically compatible with one another.

When Is This Spacer the Right Choice?

• • Right: Your monitor has VESA 75x75 mm.
• • Right: The VESA plate of your mount does not sit flush.
• • Right: The VESA threads are recessed or difficult to access inside the monitor housing.
• • Not right: Your monitor has VESA 100x100 mm. In that case, you need the appropriate 100x100 spacer.
• • Not right: Your monitor has no VESA mounting pattern. In that case, you will likely need a model-specific VESA adapter.
• • Not right: You want to convert one mounting pattern to another, for example 75x75 to 100x100. In that case, you need a VESA adapter plate.
